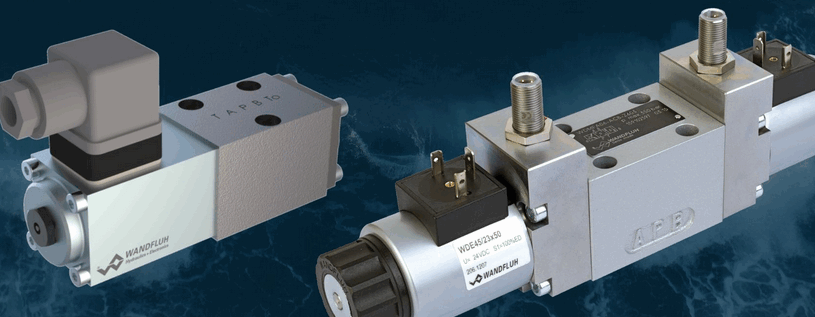

At its core, a spool valve regulates fluid flow by moving a cylindrical spool within a valve body. The spool’s position determines which fluid ports are opened or closed, directing flow to actuators (such as cylinders or motors) to drive mechanical motion. A servo driven spool valve enhances this basic functionality by integrating a servo system—typically a servo motor, piezoelectric actuator, or voice coil motor—with closed-loop feedback to precisely control the spool’s displacement.

Unlike manually operated or solenoid-driven spool valves, which offer limited positioning accuracy, servo driven models rely on real-time feedback from position sensors (e.g., linear variable differential transformers, LVDTs, or optical encoders). This closed-loop control allows the valve to adjust the spool’s position with micron-level precision, ensuring that fluid flow exactly matches the desired command signal. The result is smooth, consistent motion control that minimizes waste, reduces wear, and optimizes system performance.

Key Components and Working Principle

1. Valve Body: The housing that contains fluid ports (inlet, outlet, and work ports) and guides the spool’s movement. It is engineered to withstand high pressures and prevent leakage, often constructed from durable materials like steel or aluminum alloy.
2. Spool: A cylindrical element with groves that align with the valve body’s ports. Its axial displacement controls flow path and flow rate—small displacements regulate low flow, while larger movements allow higher flow volumes.
3. Servo Drive Unit: The "engine" of the valve, responsible for moving the spool. Common types include servo motors (for high torque, precise positioning) and piezoelectric actuators (for ultra-fast response times). The drive unit converts electrical signals from the controller into mechanical force.
4. Position Sensor: Provides real-time feedback on the spool’s position to the controller. This feedback is critical for closed-loop control, allowing the system to correct deviations and maintain accuracy.
5. Controller: The "brain" that processes input signals (e.g., from a PLC, CNC system, or human-machine interface) and sends commands to the servo drive. It compares the desired position with the sensor’s feedback, adjusting the drive signal to eliminate errors.

Technical Advantages Over Traditional Valves

• Superior Precision: Closed-loop control and high-resolution sensors enable spool positioning accuracy down to ±0.001 mm, making them ideal for applications like precision machining or robotic assembly.
• Rapid Response: Servo drives (especially piezoelectric or voice coil types) deliver fast actuation times—often under 10 ms—allowing the valve to adapt to rapid changes in load or command signals.
• Energy Efficiency: By precisely matching flow to demand, servo driven valves reduce unnecessary fluid circulation, lowering energy consumption compared to valves that operate at fixed flow rates.
• Smooth Motion Control: The ability to modulate flow gradually (rather than on/off switching) eliminates jerky movements, improving the quality of mechanical motion in applications like conveyor systems or injection molding machines.
• Reliability and Longevity: The closed-loop system reduces stress on the spool and valve body by minimizing overshoot and wear. Additionally, servo drives are designed for continuous operation, ensuring consistent performance over extended service life.

Applications Across Industries

• Industrial Automation: Used in CNC machines, robotic arms, and automated assembly lines to control linear or rotational motion with high repeatability. For example, in a robotic welding system, the valve regulates the speed and force of the weld gun, ensuring uniform welds.
• Aerospace and Defense: Integrated into aircraft hydraulic systems (e.g., landing gear, flight control surfaces) and military equipment (e.g., missile guidance systems) where reliability and precision under extreme conditions are critical.
• Energy Sector: Employed in wind turbines (to adjust blade pitch) and oil/gas drilling equipment (to control hydraulic cylinders for drill bit positioning), optimizing energy output and operational safety.
• Automotive Manufacturing: Used in assembly robots, paint sprayers, and hydraulic presses to streamline production processes and ensure consistent product quality.
• Medical Devices: Integrated into surgical robots and diagnostic equipment (e.g., MRI table positioning systems) where ultra-precise, smooth motion is essential for patient safety.

Future Trends and Innovations

• Miniaturization: Advances in servo drive technology (e.g., micro-servo motors) are enabling smaller, lighter valves that fit into compact equipment like wearable robots or portable medical devices.
• Smart Integration: Many modern valves now include built-in IoT sensors to monitor performance metrics (e.g., temperature, pressure, spool wear) in real time. This data can be used for predictive maintenance, reducing downtime and extending service life.
• Electrification: With the shift toward electric vehicles and hybrid hydraulic systems, servo driven valves are being optimized for low-power operation, integrating with electric drives to create more efficient, eco-friendly systems.
• Material Innovation: The use of advanced materials (e.g., ceramic coatings, composite alloys) is improving valve durability, corrosion resistance, and performance in extreme temperatures or harsh environments.
